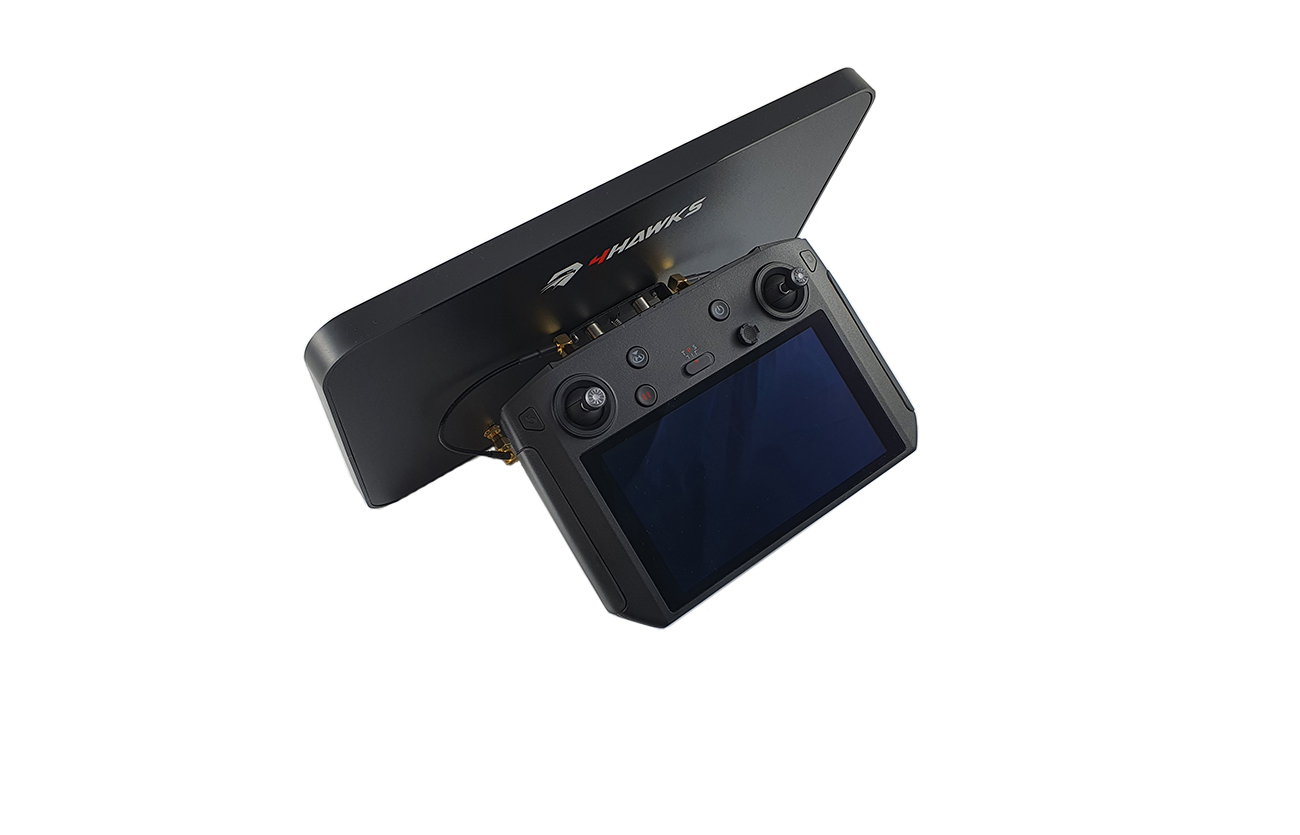

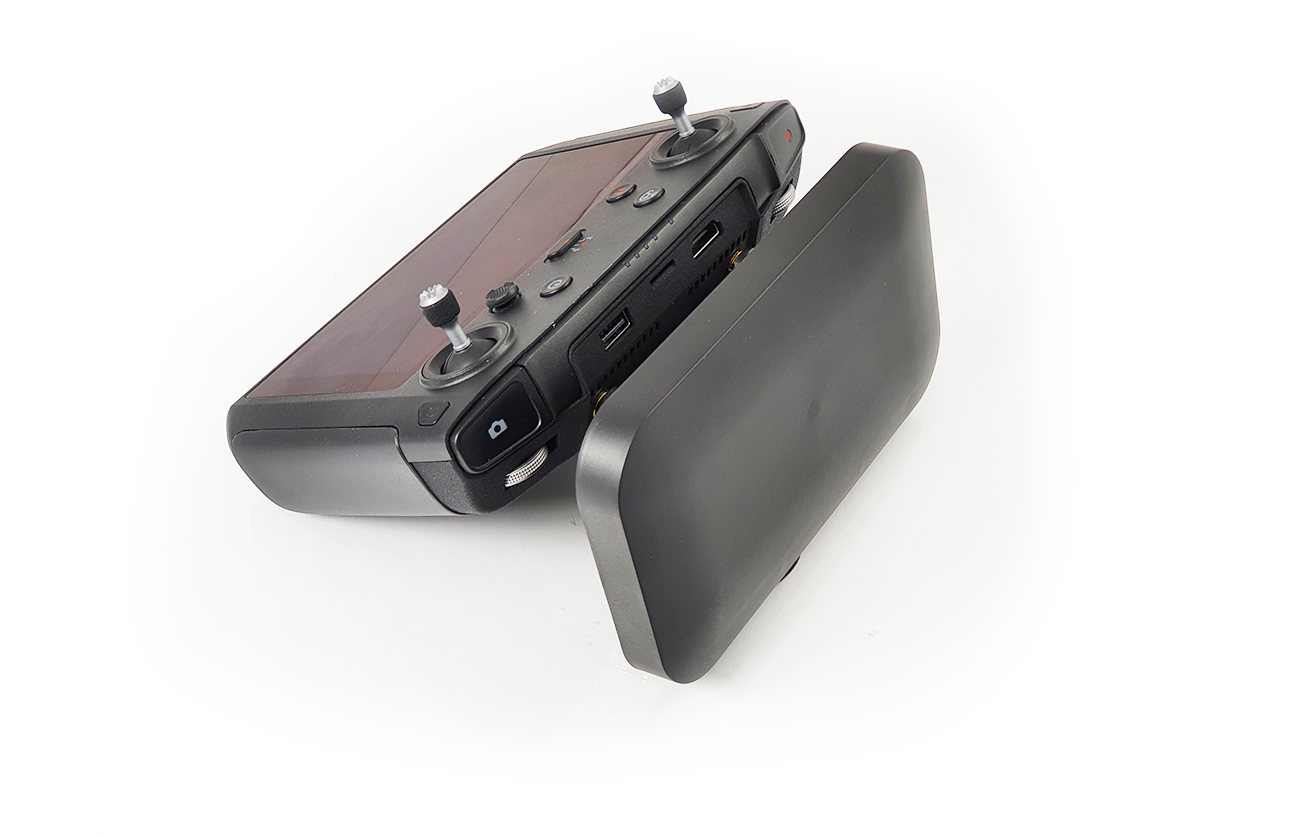

Raptor SR Description

The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0.[1] A 5.5-inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 App , DJI Fly App get you up in the air quicker, clearer, and more conveniently than ever before. 4Hawks antenna for DJI Smart Controller is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies The concept behind the look of the antenna was to make it look like it was a part of the drone by default. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna doesn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.

Compatible with the Mavic Air 2, Mavic 2 Zoom, Mavic 2 Pro and Mavic 2 Enterprise Series, Phantom 4 Pro V2.0.

Extender Flight Range

Noise removal from other devices

Improved video signal

Adjustable signal direction

High quality, lightweight design

Complete solution

What’s in the box

Range extender antenna

Stainless steel mounting kit

2x RP-SMA male RG316 black pigtails

2x Dedicated for Mavic U.FL pigtails

2x screwdriver (Torx T6 & Philips) + 8mm wrench

Additional Mavic tools

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies

Port 1: 2.40 – 2.50 GHz & 5.00 – 5.80 GHz

Port 2: 2.40 – 2.50 GHz & 5.00 – 5.80 GHz

Gain

Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)

Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)

VSWR

Port 1: < 1.50 (max. < 2.15)

Port 2: < 1.50 (max. < 2.15)

Beamwidth

Port 1: 90°/65° & 55°/55°

Port 2: 90°/65° & 55°/55°

Polarization

Port 1: Vertical

Port 2: Vertical

Impedance

Port 1: 50 Ω

Port 2: 50 Ω

Mechanical parameters

Material

Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB

Mounting: Stainless steel + paint

Weight

0.18kg (0.11kg Antenna + 0.07kg Mounting)

Dimensions

16.1 x 9.1 x 1.7 cm

Connection

Port 1: RP-SMA female

Port 2: RP-SMA female

Tilt adjustment

5 tilt positions, OnClick system

Mounting type

On SMA connectors (Permanent)

PLOTS

VSWR, Separation between connectors & characteristic patter of Raptor antennas
